1-917337-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1-917337-2
Datasheet:
Description:

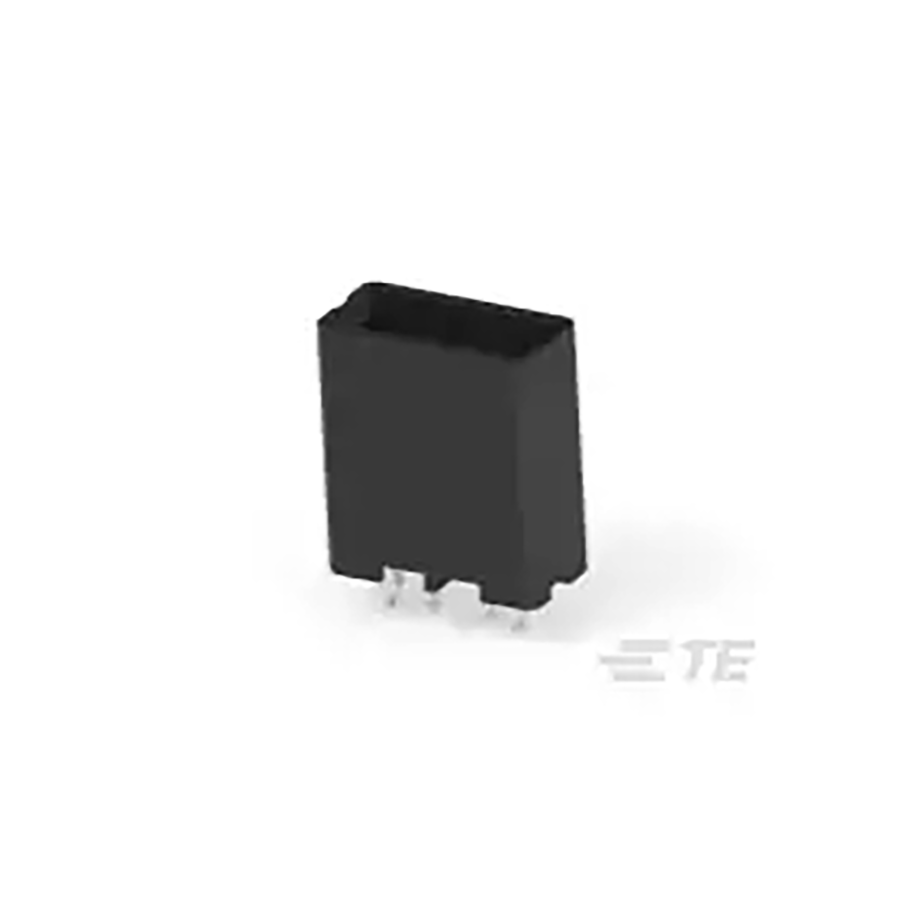

Headers and Wire Housings Through Hole Header, Plug, Tab Number of Positions:2 Pitch:5.08 mm
| Parameter | Value |
|---|---|
| Length | 19.05 mm |
| Width | 9.3472 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 21.59 mm |
| Packaging | Tube |
| Voltage Rating | 600 V |
| Depth | 9.35 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 5.08 mm |
| Number of Terminals | 2 |
| Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Shielding | Unshielded |
| Number of Contacts | 2 |
| ELV | Compliant |
| Connector Type | Header, Plug, Tab |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Connector System | Wire-to-Board |
| Contact Style | Straight |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 15 A |
| Housing Color | Black |
| PCB Thickness | 1.6002 mm |
| Tail Length | 3.8 mm |
| Contact Gender | Male |
| VDE Tested | No |
| Preloaded | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Mating Retention | With |
| Mating Alignment | With |
| Termination Post Length | 3.81 mm |
